SpudsAvailable
SPUD 1-1/2"
- Material
- Brass / Brass
- Size
- 1 1/2"
1-1/2 inch brass spud assembly with nut, friction washer, spud washer, and body.
SpudsAvailable
SPUD 1 x 3/4"
1 x 3/4 inch brass spud assembly for commercial plumbing connections.
- Category
- Spuds
- Material
- Brass
- Alloy
- Brass
- Size
- 1 x 3/4"
- Shape
- Spud Assembly
- Availability
- Available
Product Details
A 1 x 3/4 inch brass spud assembly for commercial plumbing connections, restroom repair, and facility maintenance. The drawing identifies the nut, friction washer, spud washer, and body assembly.
Applications
- Commercial Plumbing
- Outlet Connection
- Urinal Repair
- Facility Maintenance
- Restroom Repair
Keywords
spudbrass spud1 x 3/4 spud3/4 spudspud assemblyoutlet connectioncommercial plumbingurinal repair
Specifications
| Includes | Nut, friction washer, spud washer, body |
|---|---|
| Material | Brass |
| Type | Spud assembly |
| Size | 1 x 3/4" |
| Outer Diameter | 1.57" / 1.50" shown |
| Inner Diameter | 0.81" / 0.78" shown |
| Reference Diameter | 1.32" shown |
| Height | 1.50" +/- 0.01 REF shown |
| Thread | 3/4-14 NPSM-1, per ASME A112.19.5 |
Need pricing or availability for this product?
Send a quote request and include your quantity, project need, or part specification.
Related Products
SpudsAvailable
Urinal Flange Yoke Spud Brass 2-1/4" with Rubber Washer
- Material
- Brass / Brass
- Size
- 2 1/4"
Brass 2-1/4 inch urinal flange yoke spud assembly with rubber washer.
SpudsAvailable
Urinal Flange Yoke Spud Brass 2-1/4" with Sponge Gasket
- Material
- Brass / Brass
- Size
- 2 1/4"
Brass 2-1/4 inch urinal flange yoke spud assembly with sponge gasket.
SpudsAvailable

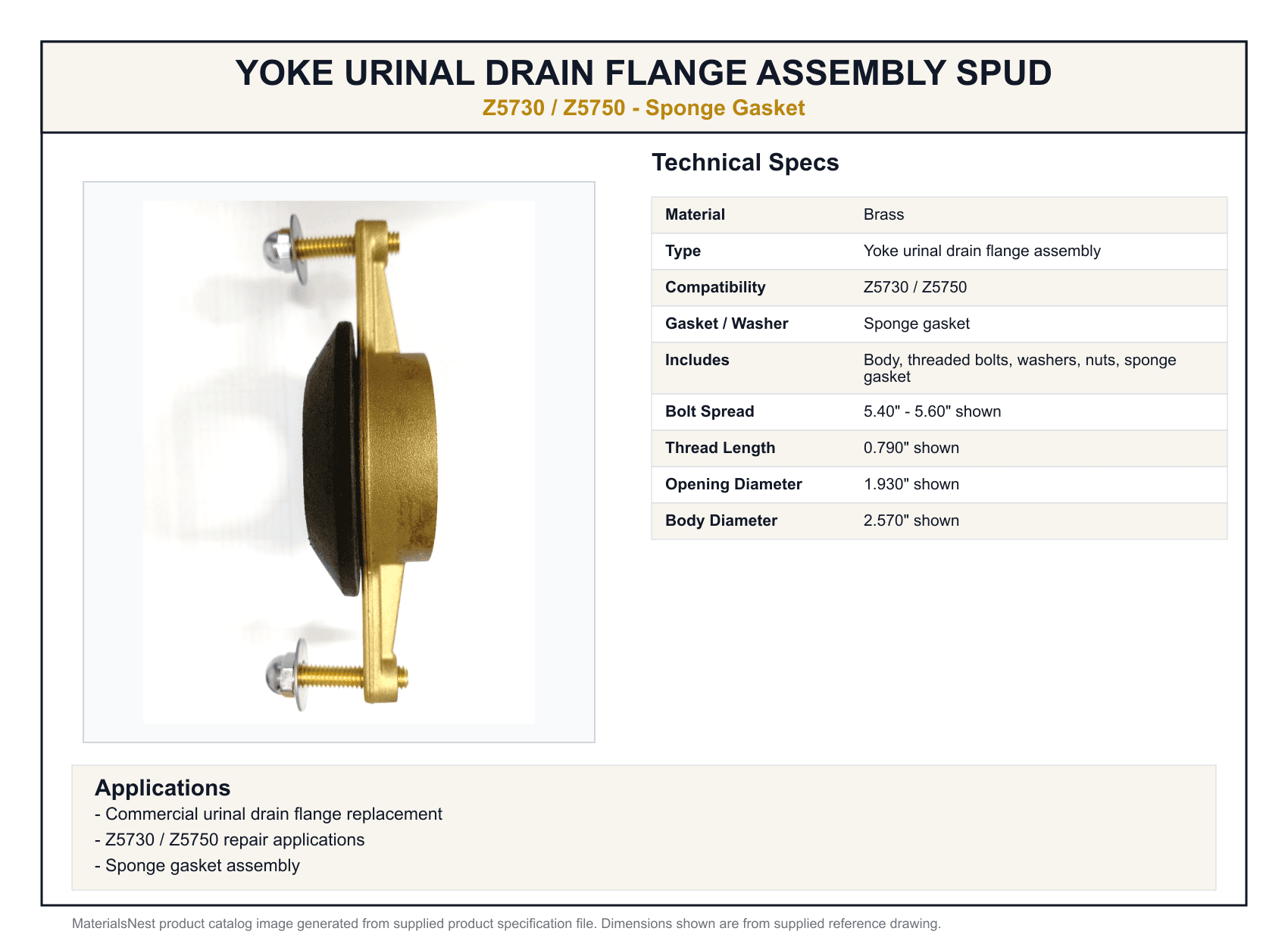

Yoke Urinal Drain Flange Assembly Z5730/Z5750 with Sponge Gasket
